CAP ALUM 330UF 20% 16V SMD

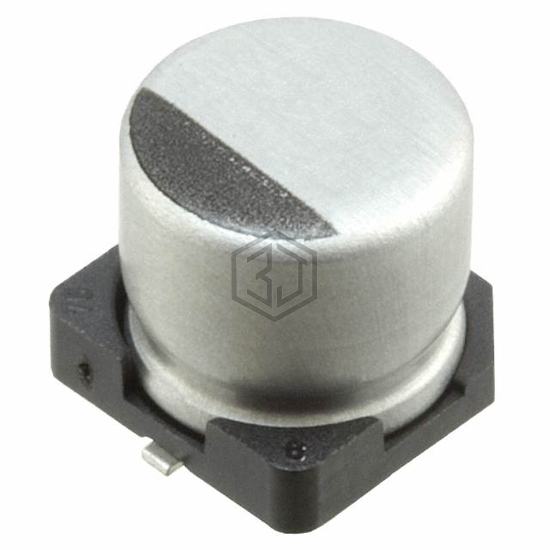

UCM1C331MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 8,973
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | 160 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.311" (7.90mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMZT250ARA331MF80G | Chemi-Con | CAP ALUM 330UF 20% 25V SMD | 86% | View |
| VZH331M1ETR-0810CS | SURGE | CAP ALUM 330UF 20% 25V SMD | 84% | View |
| EEE-FTA331XAP | Panasonic Electronic Components | CAP ALUM 330UF 20% 10V SMD | 79% | View |
| AFK337M10F24VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 10V SMD | 73% | View |
| UWT1C331MNR1GS | Nichicon | CAP ALUM 330UF 20% 16V SMD | 72% | View |
| EEE-FK1V331GL | Panasonic Electronic Components | CAP ALUM 330UF 20% 35V SMD | 50% | View |
Submit your RFQ for UCM1C331MCL1GS and get a quote within 24 hours.
