CAP ALUM 100UF 20% 16V SMD

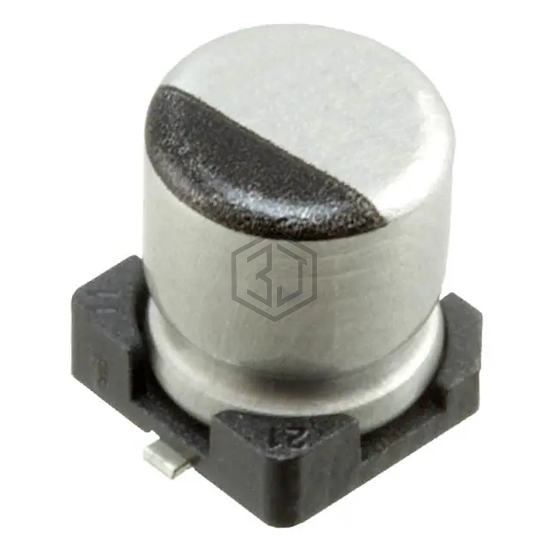

UCM1C101MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 9,646
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 120 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 100 kHz |
| Impedance | 360 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 107AXZ016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 100UF 20% 16V SMD | 96% | View |
| 107AXZ016MQ5 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 100UF 20% 16V SMD | 94% | View |
| UWG1A101MCL1GS | Nichicon | CAP ALUM 100UF 20% 10V SMD | 85% | View |
| EEE-FK0J101AV | Panasonic Electronic Components | CAP ALUM 100UF 20% 6.3V SMD | 73% | View |
| MAL214099001E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 35V SMD | 69% | View |
| AEH0810101M035R | KYOCERA AVX | ALUMINUM CAP | 69% | View |
Submit your RFQ for UCM1C101MCL1GS and get a quote within 24 hours.
