CAP ALUM 150UF 20% 10V SMD

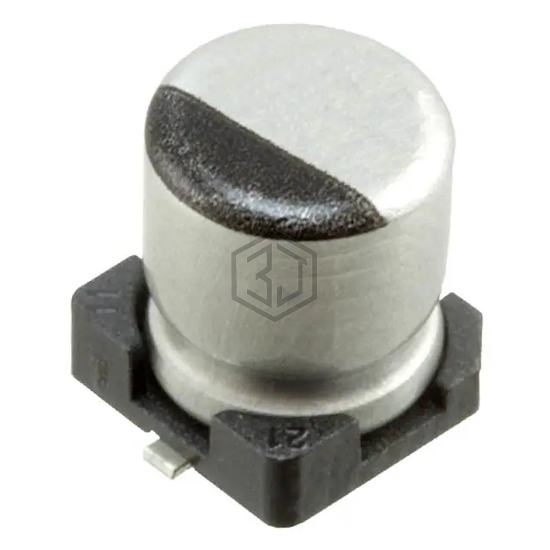

UCM1A151MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 6,525
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 120 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 100 kHz |
| Impedance | 360 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FT1A151AR | Panasonic Electronic Components | CAP ALUM 150UF 20% 10V SMD | 94% | View |
| 865080243008 | Würth Elektronik | CAP ALUM 150UF 20% 10V SMD | 89% | View |
| EEE-FP1A151AV | Panasonic Electronic Components | CAP ALUM 150UF 20% 10V SMD | 83% | View |
| EEE-FP1A151AP | Panasonic Electronic Components | CAP ALUM 150UF 20% 10V SMD | 83% | View |
| EEE-FN1C151UV | Panasonic Electronic Components | CAP ALUM 150UF 20% 16V SMD | 79% | View |
| UWT1V151MNL1GS | Nichicon | CAP ALUM 150UF 20% 35V SMD | 72% | View |
Submit your RFQ for UCM1A151MCL1GS and get a quote within 24 hours.
