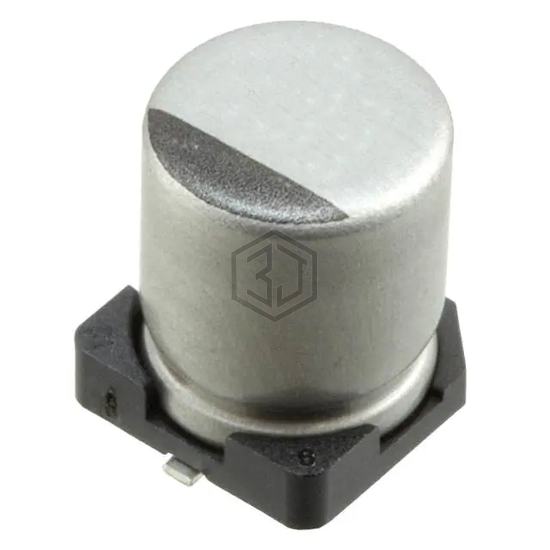

CAP ALUM 680UF 20% 6.3V SMD
UCM0J681MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 5,401
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | 160 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AEA0810681M006R | KYOCERA AVX | ALUMINUM CAP | 95% | View |
| 865060153009 | Würth Elektronik | CAP ALUM 680UF 20% 6.3V SMD | 94% | View |
| UWD0J681MCL1GS | Nichicon | CAP ALUM 680UF 20% 6.3V SMD | 87% | View |
| EEE-FK1A681AP | Panasonic Electronic Components | CAP ALUM 680UF 20% 10V SMD | 81% | View |
| EEE-FK1A681AV | Panasonic Electronic Components | CAP ALUM 680UF 20% 10V SMD | 78% | View |
| EEE-FK1A681V | Panasonic Electronic Components | CAP ALUM 680UF 20% 10V SMD | 76% | View |
Submit your RFQ for UCM0J681MCL1GS and get a quote within 24 hours.
