CAP ALUM 22UF 20% 35V SMD

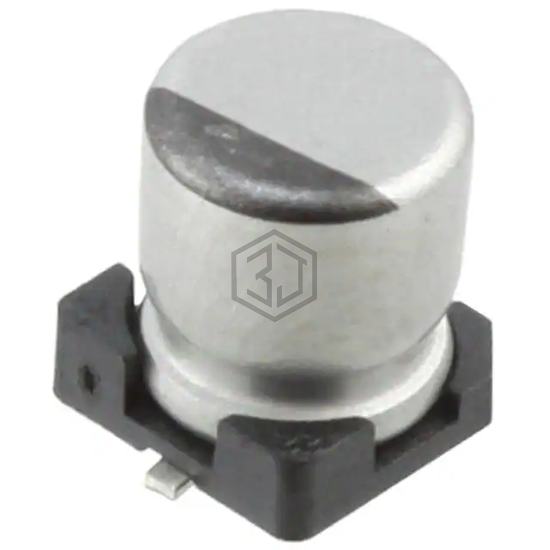

UCL1V220MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 5,288
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 120 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 100 kHz |
| Impedance | 360 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UT226M100HFKTA | Aillen | CAP. ALUM 22UF 100V 20% SMD | 69% | View |
| AFK226M16C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 16V SMD | 65% | View |
| EXV226M016A9BAA | KEMET | CAP ALUM 22UF 20% 16V SMD | 59% | View |
| EEE-FN1K220L | Panasonic Electronic Components | CAP ALUM 22UF 20% 80V SMD | 56% | View |
| EMVY100ADA220MD60G | United Chemi-Con | CAP ALUM 22UF 20% 10V SMD | 56% | View |
| AFK226M2AF24VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 100V SMD | 53% | View |
Submit your RFQ for UCL1V220MCL1GS and get a quote within 24 hours.
