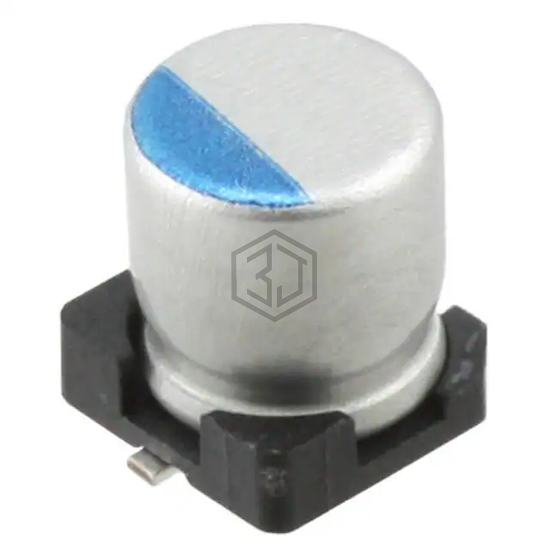

CAP ALUM 220UF 20% 50V SMD
UCL1H221MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 4,249
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 450 mA @ 120 Hz |
| Ripple Current @ High Frequency | 900 mA @ 100 kHz |
| Impedance | 120 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.406" (10.30mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FT1H221GV | Panasonic Electronic Components | CAP ALUM 220UF 20% 50V SMD | 92% | View |
| MAL216099805E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 63V SMD | 78% | View |
| EMH1JM221WG5D00R | AiSHi Capacitors | ALUMINUM E-CAP SMT | 74% | View |
| ATB227M025 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 220UF 20% 25V SMD | 64% | View |
| CEE1E221MCB08A5F2 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 63% | View |
| EEE-FP1C221AV | Panasonic Electronic Components | CAP ALUM 220UF 20% 16V SMD | 57% | View |
Submit your RFQ for UCL1H221MNL1GS and get a quote within 24 hours.
