CAP ALUM 680UF 20% 25V SMD

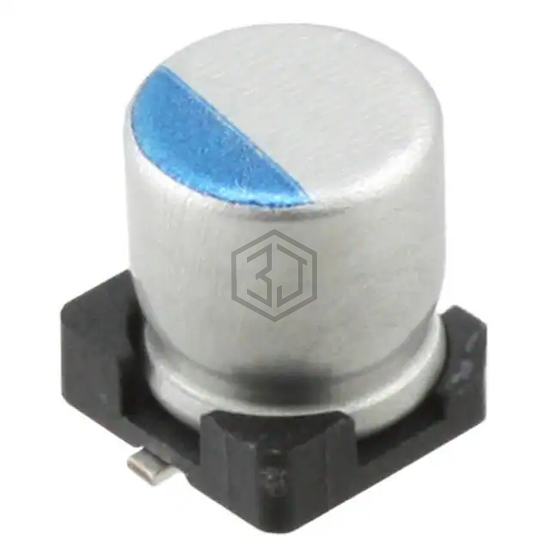

UCL1E681MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 5,266
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 595 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.19 A @ 100 kHz |
| Impedance | 60 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCL1C681MNL1GS | Nichicon | CAP ALUM 680UF 20% 16V SMD | 88% | View |
| UUE1V681MNS1MS | Nichicon | CAP ALUM 680UF 20% 35V SMD | 82% | View |
| EEE-FK1C681AL | Panasonic Electronic Components | CAP ALUM 680UF 20% 16V SMD | 78% | View |
| AFK687M16G24VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 20% 16V SMD | 78% | View |
| 16JZV680M10X10.5 | Rubycon | CAP ALUM 680UF 20% 16V SMD | 75% | View |
| EEE-FP1A681AV | Panasonic Electronic Components | CAP ALUM 680UF 20% 10V SMD | 71% | View |
