CAP ALUM 33UF 20% 25V SMD

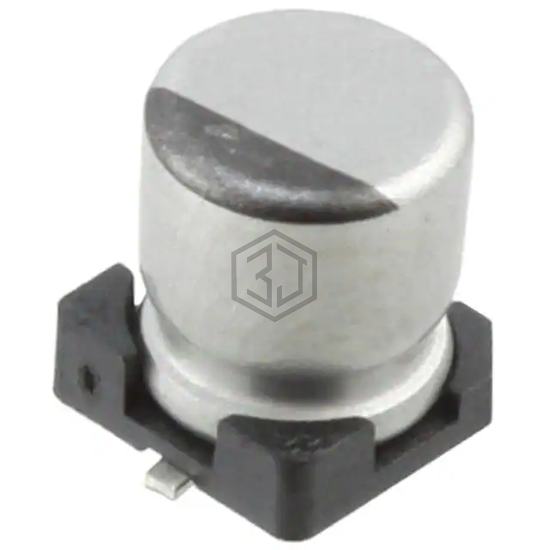

UCL1E330MCL6GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 2,193
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 120 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 100 kHz |
| Impedance | 360 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FN1E330R | Panasonic Electronic Components | CAP ALUM 33UF 20% 25V SMD | 87% | View |
| EEE-FK1V330P | Panasonic Electronic Components | CAP ALUM 33UF 20% 35V SMD | 83% | View |
| AFK336M35D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 33UF 20% 35V SMD | 83% | View |
| EEV336M035A9GAA | KEMET | CAP ALUM 33UF 20% 35V SMD | 80% | View |
| EEE-FP1A330AR | Panasonic Electronic Components | CAP ALUM 33UF 20% 10V SMD | 73% | View |
| UT336M100HGKTA | Aillen | CAP. ALUM 33UF 100V 20% SMD | 67% | View |
Submit your RFQ for UCL1E330MCL6GS and get a quote within 24 hours.
