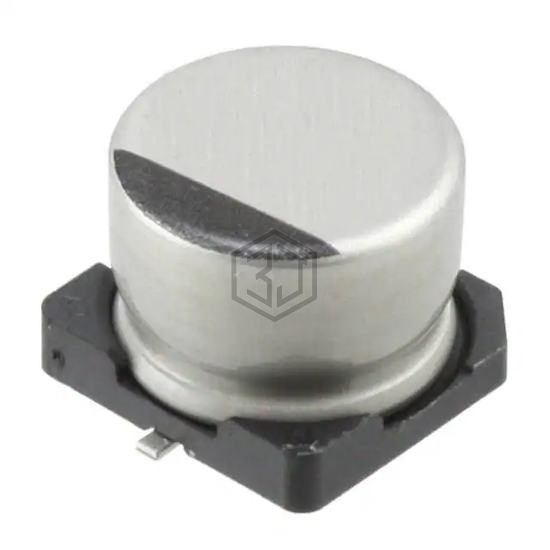

CAP ALUM 150UF 20% 25V SMD
UCL1E151MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 4,413
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 425 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | 80 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35TKV150M8X10.5 | Rubycon | CAP ALUM 150UF 20% 35V SMD | 87% | View |
| EEE-FK2A151AV | Panasonic Electronic Components | CAP ALUM 150UF 20% 100V SMD | 69% | View |
| EEV-FK1J151V | Panasonic Electronic Components | CAP ALUM 150UF 20% 63V SMD | 65% | View |
| UCL1C151MCL1GS | Nichicon | CAP ALUM 150UF 20% 16V SMD | 65% | View |
| AEA1616151M100R | KYOCERA AVX | ALUMINUM CAP | 65% | View |
| AEA0810151M035R | KYOCERA AVX | ALUMINUM CAP | 63% | View |
