CAP ALUM 100UF 20% 25V SMD

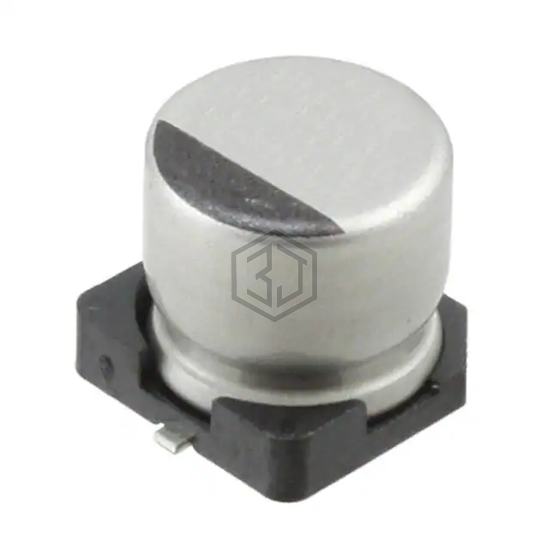

UCL1E101MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 4,687
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | 160 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AFK107M35F24T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 35V SMD | 83% | View |
| AEK1213101M100R | KYOCERA AVX | CAP ALUM 100V POLAR | 73% | View |
| AEK1010101M050R | KYOCERA AVX | CAP ALUM 50V POLAR | 72% | View |
| EMVY160ARA101MH63G | Chemi-Con | CAP ALUM 100UF 20% 16V SMD | 71% | View |
| UWG1H101MNL1GS | Nichicon | CAP ALUM 100UF 20% 50V SMD | 66% | View |
| EEE-FN1E101UL | Panasonic Electronic Components | CAP ALUM 100UF 20% 25V SMD | 62% | View |
Submit your RFQ for UCL1E101MCL1GS and get a quote within 24 hours.
