CAP ALUM 47UF 20% 16V SMD

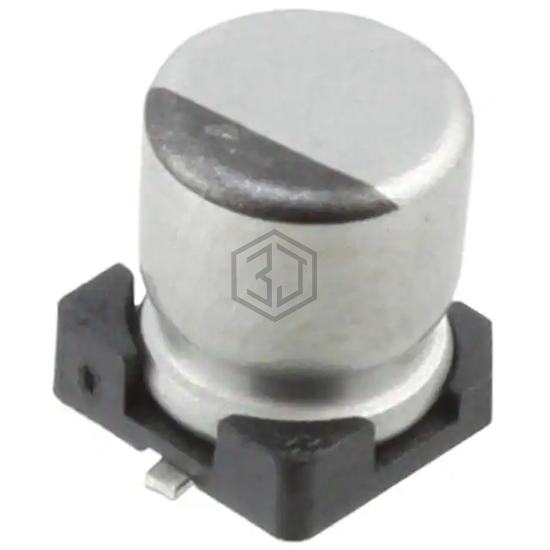

UCL1C470MCL6GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 5,888
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 120 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 100 kHz |
| Impedance | 360 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 865060343004 | Würth Elektronik | CAP ALUM 47UF 20% 16V SMD | 92% | View |
| EEE-FK1E470AP | Panasonic Electronic Components | CAP ALUM 47UF 20% 25V SMD | 83% | View |
| UCQ1V470MCL1GS | Nichicon | CAP ALUM 47UF 20% 35V SMD | 72% | View |
| EEE-FP1E470AL | Panasonic Electronic Components | CAP ALUM 47UF 20% 25V SMD | 69% | View |
| AVEZ476M10D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 10V SMD | 67% | View |
| UH476M035HEJTA | Aillen | CAP ALUM 47UF 20% 35V SMD | 67% | View |
