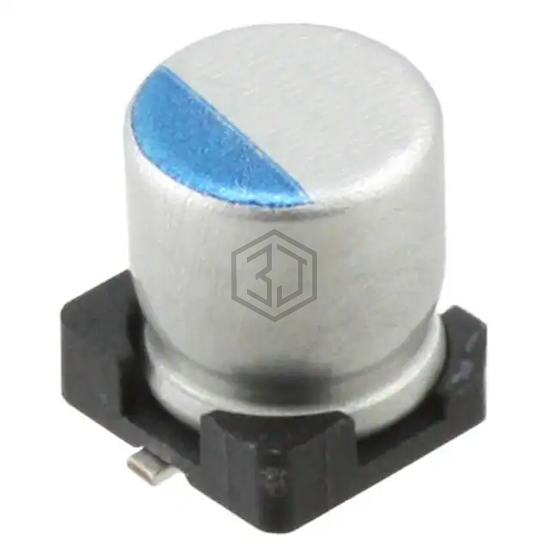

CAP ALUM 330UF 20% 16V SMD
UCL1C331MCL6GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 4,090
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 425 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | 100 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ATB337M016 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 16V SMD | 87% | View |
| RTJ-16V331MH11U-R2 | Elna America | CAP 330UF 16V SMD | 76% | View |
| MAL224699809E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 63V SMD | 69% | View |
| UWT1V331MNL1GS | Nichicon | CAP ALUM 330UF 20% 35V SMD | 55% | View |
| UUA0J331MNL1GS | Nichicon | CAP ALUM 330UF 20% 6.3V SMD | 54% | View |
| UT337M035HGKTA | Aillen | CAP. ALUM 330UF 35V 20% SMD | 54% | View |
