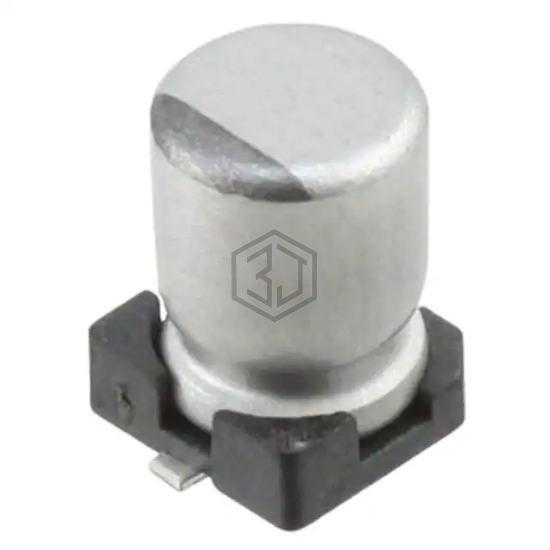

CAP ALUM 10UF 20% 16V SMD
UCL1C100MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 4,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 80 mA @ 120 Hz |
| Ripple Current @ High Frequency | 160 mA @ 100 kHz |
| Impedance | 850 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VZH100M1HTR-0606S | SURGE | CAP ALUM 10UF 20% 50V SMD | 75% | View |
| 50TZV10M6.3X6.1 | Rubycon | CAP ALUM 10UF 20% 50V SMD | 74% | View |
| EEE-FN2A100V | Panasonic Electronic Components | CAP ALUM 10UF 20% 100V SMD | 73% | View |
| EEE-FK1H100V | Panasonic Electronic Components | CAP ALUM 10UF 20% 50V SMD | 68% | View |
| EXV106M025S9BAA | KEMET | CAP ALUM 10UF 20% 25V SMD | 61% | View |
| EMK1VM100D80D00R | AiSHi Capacitors | ALUMINUM E-CAP SMT | 59% | View |
Submit your RFQ for UCL1C100MCL1GS and get a quote within 24 hours.
