CAP ALUM 33UF 20% 10V SMD

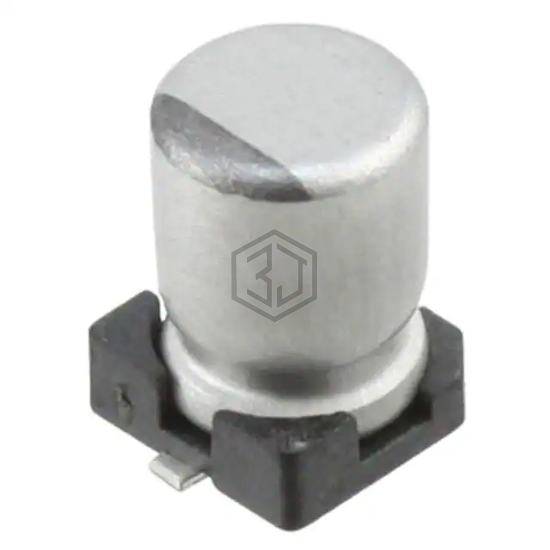

UCL1A330MCL6GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 5,173
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 80 mA @ 120 Hz |
| Ripple Current @ High Frequency | 160 mA @ 100 kHz |
| Impedance | 850 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUD1A330MCL1GS | Nichicon | CAP ALUM 33UF 20% 10V SMD | 96% | View |
| 336SVL010MDW | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 10V SMD | 77% | View |
| UWD1H330MCL1GS | Nichicon | CAP ALUM 33UF 20% 50V SMD | 73% | View |
| UUX1V330MCL6GS | Nichicon | CAP ALUM 33UF 20% 35V SMD | 72% | View |
| MAL215374339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 10V SMD | 69% | View |
| EEE-FK1H330XL | Panasonic Electronic Components | CAP ALUM 33UF 20% 50V SMD | 62% | View |
Submit your RFQ for UCL1A330MCL6GS and get a quote within 24 hours.
