CAP ALUM 470UF 20% 6.3V SMD

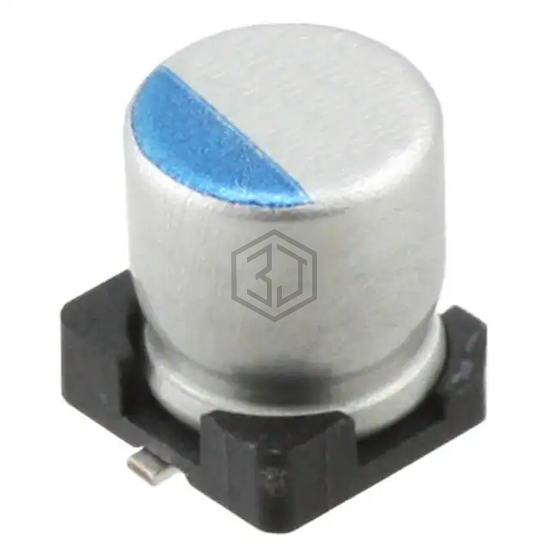

UCL0J471MCL6GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 5,084
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 425 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | 100 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCL1A471MCL6GS | Nichicon | CAP ALUM 470UF 20% 10V SMD | 88% | View |
| EEE-FTA471XAV | Panasonic Electronic Components | CAP ALUM 470UF 20% 10V SMD | 76% | View |
| EEE-FN1V471UL | Panasonic Electronic Components | CAP ALUM 470UF 20% 35V SMD | 73% | View |
| MAL225099817E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V SMD | 70% | View |
| MAL224699811E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V SMD | 69% | View |
| EMK1CM471FB0D00R | AiSHi Capacitors | ALUMINUM E-CAP SMT | 56% | View |
Submit your RFQ for UCL0J471MCL6GS and get a quote within 24 hours.
