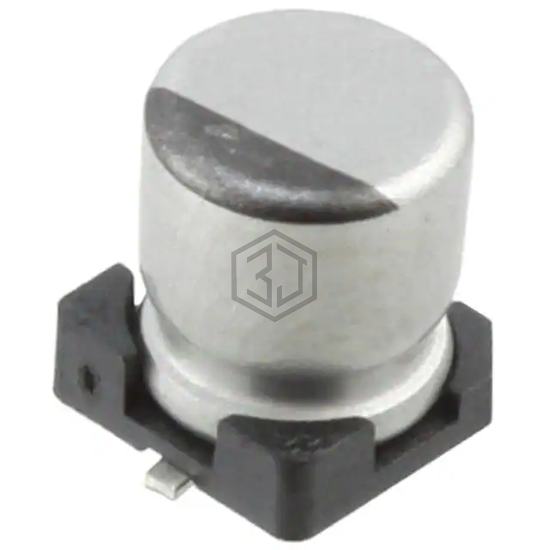

CAP ALUM 47UF 20% 6.3V SMD
UCL0J470MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 1,425
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 120 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 100 kHz |
| Impedance | 360 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCM1V470MCL1GS | Nichicon | CAP ALUM 47UF 20% 35V SMD | 82% | View |
| EXV476M016A9GAA | KEMET | CAP ALUM 47UF 20% 16V SMD | 70% | View |
| EMZA6R3ADA470ME61G | United Chemi-Con | CAP ALUM 47UF 20% 6.3V SMD | 70% | View |
| 476SMH6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 6.3V SMD | 69% | View |
| AFK476M50X16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 50V SMD | 66% | View |
| EEE-FT1C470AR | Panasonic Electronic Components | CAP ALUM 47UF 20% 16V SMD | 66% | View |
Submit your RFQ for UCL0J470MCL1GS and get a quote within 24 hours.
