CAP ALUM 47UF 20% 25V SMD

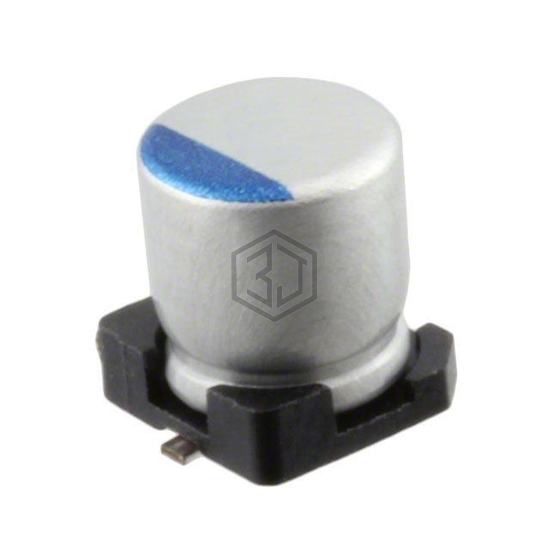

UCJ1E470MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 14Ohm |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 47.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 95 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for UCJ1E470MCL1GS and get a quote within 24 hours.
