CAP ALUM 220UF 20% 25V SMD

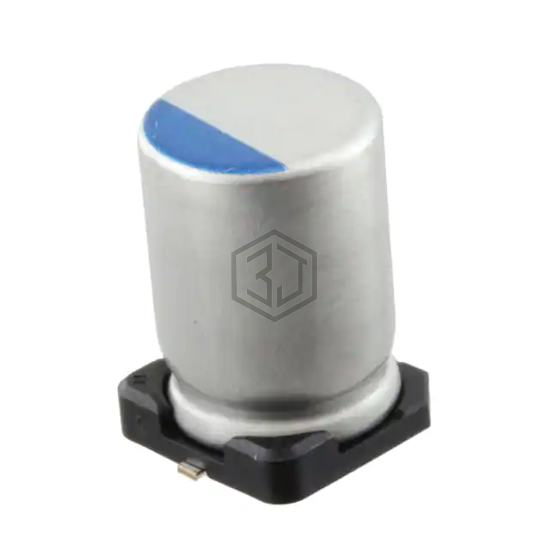

UCJ1E221MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 5,257
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 1.5Ohm |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 200 mA @ 120 Hz |
| Ripple Current @ High Frequency | 400 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25TXV220M10X10.5 | Rubycon | CAP ALUM 220UF 20% 25V SMD | 93% | View |
| EEE-TG1E221P | Panasonic Electronic Components | CAP ALUM 220UF 20% 25V SMD | 87% | View |
| VUP221M1VTR-1010S | Surge | CAP ALUM 35V POLAR | 79% | View |
| 16THV220M8X10.5 | Rubycon | CAP ALUM 220UF 20% 16V SMD | 77% | View |
| EMVH160ARA221MJA0G | Chemi-Con | CAP ALUM 220UF 20% 16V SMD | 72% | View |
| EMHL100ARA221MF80G | United Chemi-Con | CAP ALUM 220UF 20% 10V SMD | 64% | View |
Submit your RFQ for UCJ1E221MCL1GS and get a quote within 24 hours.
