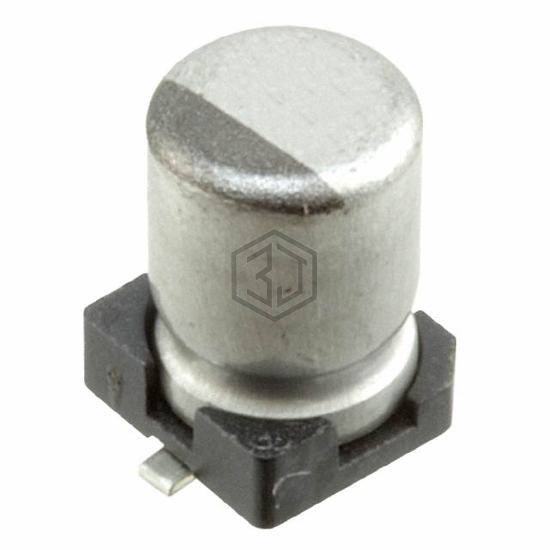

CAP ALUM 4.7UF 20% 35V SMD
UCD1V4R7MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 5,190
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 45 mA @ 120 Hz |
| Ripple Current @ High Frequency | 90 mA @ 100 kHz |
| Impedance | 1.35 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCD1V4R7MCL1GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV-FK1V4R7R | Panasonic Electronic Components | CAP ALUM 4.7UF 20% 35V SMD | 92% | View |
| 865060642004 | Würth Elektronik | CAP ALUM 4.7UF 20% 50V SMD | 86% | View |
| UUD1H4R7MCR1GS | Nichicon | CAP ALUM 4.7UF 20% 50V SMD | 84% | View |
| UT475M100HEHTA | Aillen | CAP. ALUM 4.7UF 100V 20% SMD | 66% | View |
| 50TZV4R7M4X6.1 | Rubycon | CAP ALUM 4.7UF 20% 50V SMD | 54% | View |
| UUP1V4R7MCL1GS | Nichicon | CAP ALUM 4.7UF 20% 35V SMD | 52% | View |
Submit your RFQ for UCD1V4R7MCL1GS and get a quote within 24 hours.
