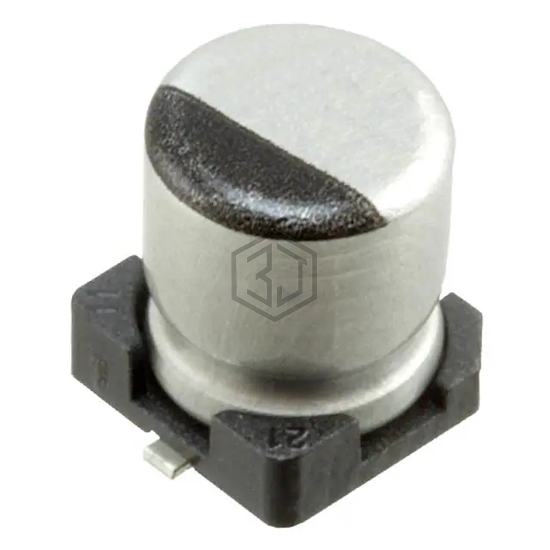

CAP ALUM 22UF 20% 35V SMD
UCD1V220MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 5,582
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 80 mA @ 120 Hz |
| Ripple Current @ High Frequency | 160 mA @ 100 kHz |
| Impedance | 700 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCD1V220MCL1GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWD1C220MCL1GS | Nichicon | CAP ALUM 22UF 20% 16V SMD | 78% | View |
| EEE-FN2A220L | Panasonic Electronic Components | CAP ALUM 22UF 20% 100V SMD | 73% | View |
| EEE-FK1J220XP | Panasonic Electronic Components | CAP ALUM 22UF 20% 63V SMD | 70% | View |
| AFK226M63E16VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 63V SMD | 68% | View |
| AFK226M80F24VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 80V SMD | 61% | View |
| UWT1H220MCL6GS | Nichicon | CAP ALUM 22UF 20% 50V SMD | 55% | View |
