CAP ALUM 10UF 20% 35V SMD

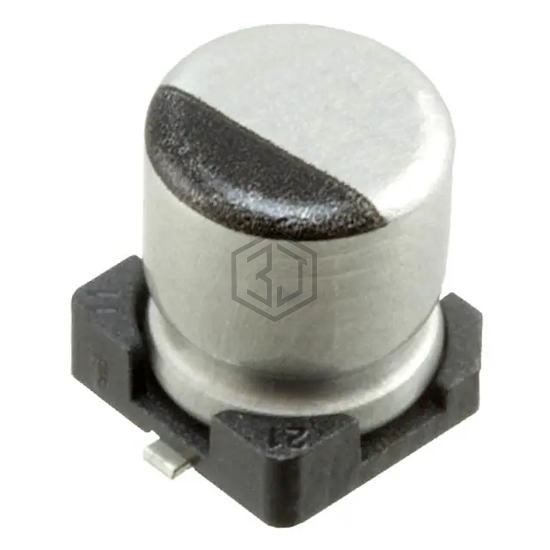

UCD1V100MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 8,088
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 80 mA @ 120 Hz |
| Ripple Current @ High Frequency | 160 mA @ 100 kHz |
| Impedance | 700 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCD1V100MCL1GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 865060542002 | Würth Elektronik | CAP ALUM 10UF 20% 35V SMD | 95% | View |
| EEE-FN1V100R | Panasonic Electronic Components | CAP ALUM 10UF 20% 35V SMD | 79% | View |
| 25SKV10M5X5.5 | Rubycon | CAP ALUM 10UF 20% 25V SMD | 78% | View |
| UT106M035HDHTA | Aillen | CAP. ALUM 10UF 35V 20% SMD | 64% | View |
| 106SVL050MEW | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10UF 20% 50V SMD | 58% | View |
| AFK106M63D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 63V SMD | 55% | View |
Submit your RFQ for UCD1V100MCL1GS and get a quote within 24 hours.
