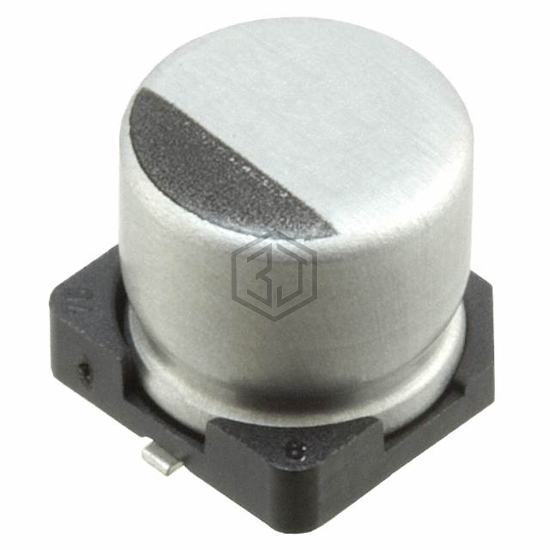

CAP ALUM 4.7UF 20% 80V SMD
UCD1K4R7MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 80V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - SMD.
In Stock: 6,421
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 20 mA @ 120 Hz |
| Ripple Current @ High Frequency | 40 mA @ 100 kHz |
| Impedance | 3 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCD1K4R7MCL1GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV-FK1J4R7R | Panasonic Electronic Components | CAP ALUM 4.7UF 20% 63V SMD | 86% | View |
| 865060742001 | Würth Elektronik | CAP ALUM 4.7UF 20% 63V SMD | 81% | View |
| EMVY500ARA4R7ME55G | Chemi-Con | CAP ALUM 4.7UF 20% 50V SMD | 80% | View |
| AFK335M80C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 3.3UF 20% 80V SMD | 71% | View |
| 335SVL050MCW | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3.3UF 20% 50V SMD | 58% | View |
| 335SMH050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3.3UF 20% 50V SMD | 55% | View |
Submit your RFQ for UCD1K4R7MCL1GS and get a quote within 24 hours.
