CAP ALUM 10UF 20% 80V SMD

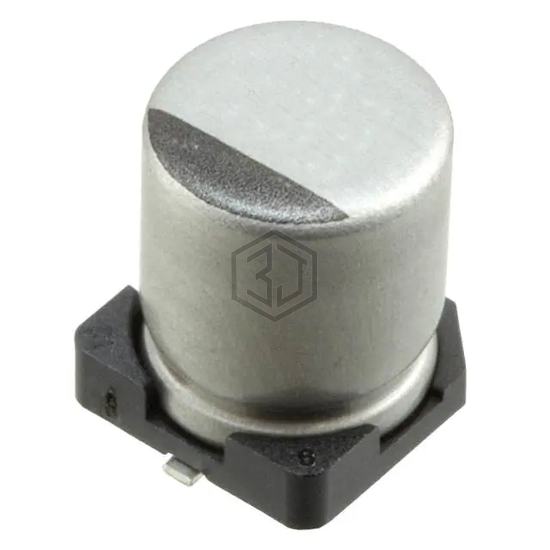

UCD1K100MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 80V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - SMD.
In Stock: 6,969
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 30 mA @ 120 Hz |
| Ripple Current @ High Frequency | 60 mA @ 100 kHz |
| Impedance | 2.4 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCD1K100MCL1GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMK1JM100E83D00R | AiSHi Capacitors | ALUMINUM E-CAP SMT | 85% | View |
| UWT1H100MCR1GB | Nichicon | CAP ALUM 10UF 20% 50V SMD | 79% | View |
| AVEK106M50D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 50V SMD | 79% | View |
| 50TZV10M5X6.1 | Rubycon | CAP ALUM 10UF 20% 50V SMD | 73% | View |
| EEE-FN1J100L | Panasonic Electronic Components | CAP ALUM 10UF 20% 63V SMD | 73% | View |
| UCQ1V100MCL1GB | Nichicon | CAP ALUM 10UF 20% 35V SMD | 72% | View |
