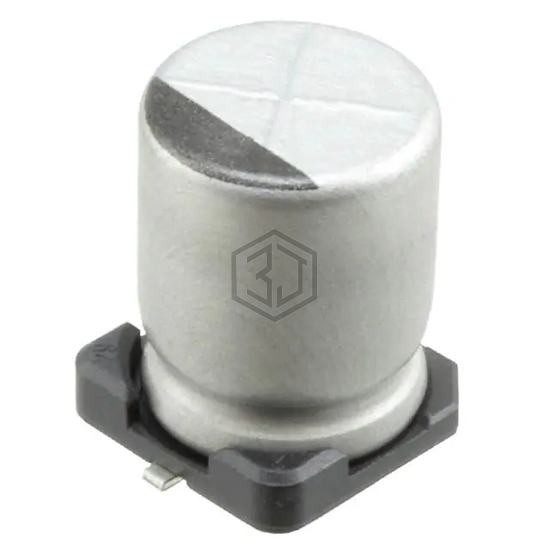

CAP ALUM 47UF 20% 63V SMD
UCD1J470MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 2,068
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 125 mA @ 120 Hz |
| Ripple Current @ High Frequency | 250 mA @ 100 kHz |
| Impedance | 650 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCD1J470MNL1GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AEH1010470M080R | KYOCERA AVX | ALUMINUM CAP | 86% | View |
| RAVVD470M1GDC8002U | Taiyo Yuden | CAP ALUM 47UF 20% 35V SMD | 82% | View |
| 476AXZ035MQ5 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 35V SMD | 78% | View |
| UUX1J470MNL6GS | Nichicon | CAP ALUM 47UF 20% 63V SMD | 77% | View |
| EEE-FK1C470AV | Panasonic Electronic Components | CAP ALUM 47UF 20% 16V SMD | 73% | View |
| EEE-FN1K470UL | Panasonic Electronic Components | CAP ALUM 47UF 20% 80V SMD | 68% | View |
Submit your RFQ for UCD1J470MNL1GS and get a quote within 24 hours.
