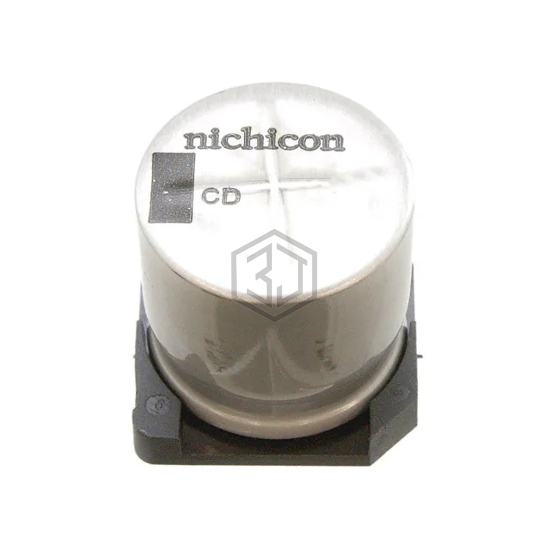

CAP ALUM 470UF 20% 50V SMD
UCD1H471MNQ1MS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 2,951
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 805 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.61 A @ 100 kHz |
| Impedance | 73 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | 0.673" L x 0.673" W (17.10mm x 17.10mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCD1H471MNQ1MS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214699108E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 50V SMD | 95% | View |
| EMVY500BTR471MMH0S | United Chemi-Con | CAP ALUM 470UF 20% 50V SMD | 81% | View |
| EEV-FK1V471V | Panasonic Electronic Components | CAP ALUM 470UF 20% 35V SMD | 80% | View |
| EMVY350GDA471MLH0S | United Chemi-Con | CAP ALUM 470UF 20% 35V SMD | 77% | View |
| MAL214699712E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 80V SMD | 71% | View |
| EEE-FK1E471GV | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V SMD | 58% | View |
