CAP ALUM 47UF 20% 50V SMD

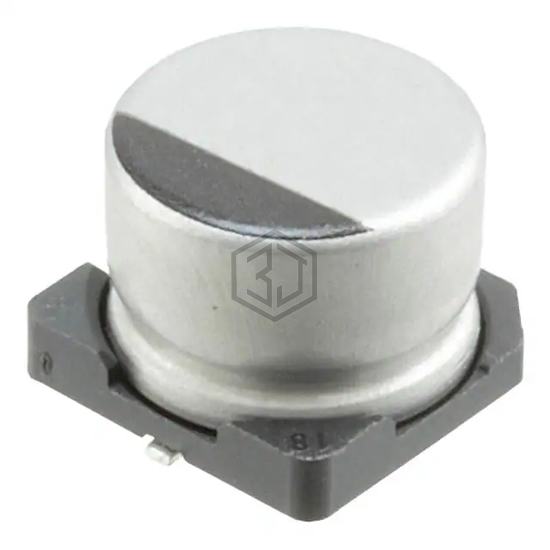

UCD1H470MCL6GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 3,480
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 100 mA @ 120 Hz |
| Ripple Current @ High Frequency | 200 mA @ 100 kHz |
| Impedance | 630 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCD1H470MCL6GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50TZV47M6.3X8 | Rubycon | CAP ALUM 47UF 20% 50V SMD | 89% | View |
| 865080649013 | Würth Elektronik | CAP ALUM 47UF 20% 50V SMD | 86% | View |
| EEV476M050S9LAA | KEMET | CAP ALUM 47UF 20% 50V SMD | 84% | View |
| UUX1V470MNL1GS | Nichicon | CAP ALUM 47UF 20% 35V SMD | 83% | View |
| EMZA250ADA470MF61G | United Chemi-Con | CAP ALUM 47UF 20% 25V SMD | 70% | View |
| 865080342006 | Würth Elektronik | CAP ALUM 47UF 20% 16V SMD | 70% | View |
