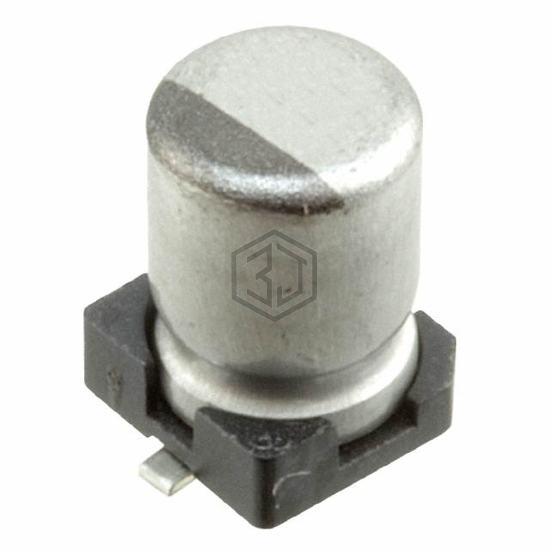

CAP ALUM 3.3UF 20% 50V SMD
UCD1H3R3MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3.3UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 1,877
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 30 mA @ 120 Hz |
| Ripple Current @ High Frequency | 60 mA @ 100 kHz |
| Impedance | 2.7 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCD1H3R3MCL1GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 865080640003 | Würth Elektronik | CAP ALUM 3.3UF 20% 50V SMD | 90% | View |
| AFC335M35B12T-F | Cornell Dubilier Knowles | CAP ALUM 3.3UF 20% 35V SMD | 81% | View |
| AFC335M50B12T-F | Cornell Dubilier Knowles | CAP ALUM 3.3UF 20% 50V SMD | 72% | View |
| MAL213968338E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3.3UF 20% 63V SMD | 67% | View |
| UWD1H3R3MCL1GS | Nichicon | CAP ALUM 3.3UF 20% 50V SMD | 64% | View |
| EMVY500ADA3R3MD55G | United Chemi-Con | CAP ALUM 3.3UF 20% 50V SMD | 56% | View |
Submit your RFQ for UCD1H3R3MCL1GS and get a quote within 24 hours.
