CAP ALUM 330UF 20% 50V SMD

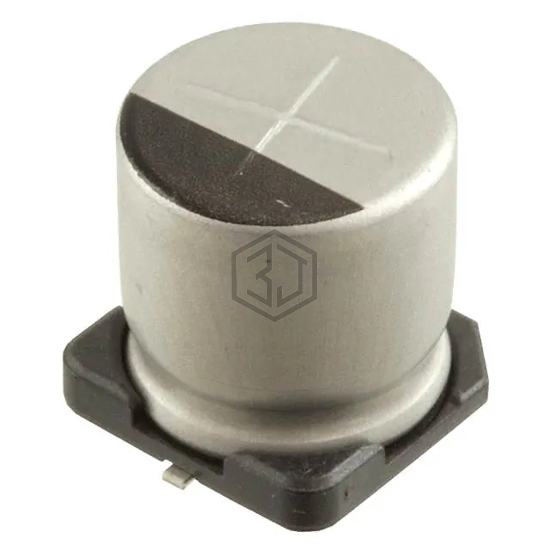

UCD1H331MCL6GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 7,970
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 400 mA @ 120 Hz |
| Ripple Current @ High Frequency | 800 mA @ 100 kHz |
| Impedance | 140 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214099813E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 63V SMD | 87% | View |
| VEU331M1HTR-1316S | Surge | CAP ALUM 50V POLAR | 86% | View |
| MAL214699107E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 50V SMD | 77% | View |
| UWG1C331MNL1GS | Nichicon | CAP ALUM 330UF 20% 16V SMD | 74% | View |
| EEE-FK1C331GL | Panasonic Electronic Components | CAP ALUM 330UF 20% 16V SMD | 72% | View |
| 865060153007 | Würth Elektronik | CAP ALUM 330UF 20% 6.3V SMD | 61% | View |
Submit your RFQ for UCD1H331MCL6GS and get a quote within 24 hours.
