CAP ALUM 1000UF 20% 16V SMD

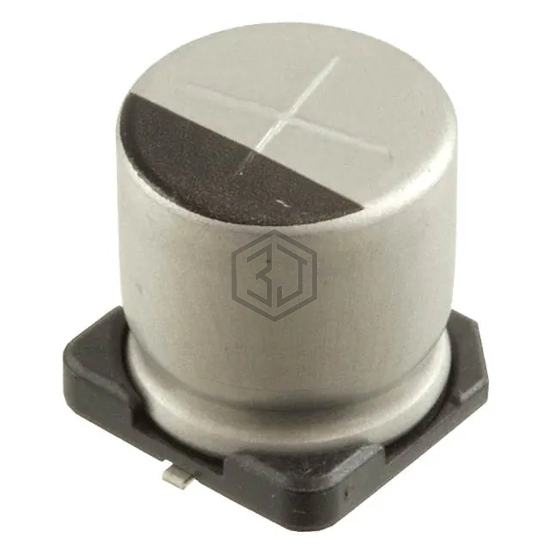

UCD1C102MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 3,198
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 475 mA @ 120 Hz |
| Ripple Current @ High Frequency | 950 mA @ 100 kHz |
| Impedance | 80 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCD1C102MNL1GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VZH102M1CTR-1313S | SURGE | CAP ALUM 1000UF 20% 16V SMD | 94% | View |
| EEE-FK1A102AP | Panasonic Electronic Components | CAP ALUM 1000UF 20% 10V SMD | 81% | View |
| UUD1A102MNL1GS | Nichicon | CAP ALUM 1000UF 20% 10V SMD | 72% | View |
| MAL224699112E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V SMD | 63% | View |
| UT108M6V3HGKTA | Aillen | CAP. ALUM 1000UF 6.3V 20% SMD | 58% | View |
| EMVY500GTR102MMN0S | United Chemi-Con | CAP ALUM 1000UF 20% 50V SMD | 56% | View |
Submit your RFQ for UCD1C102MNL1GS and get a quote within 24 hours.
