CAP ALUM 1000UF 20% 6.3V SMD

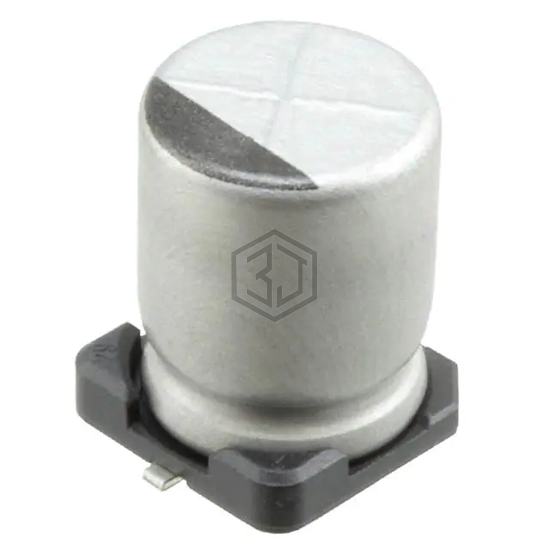

UCD0J102MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 5,471
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | 160 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCD0J102MNL1GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MZA6.3VC102MH10TP | United Chemi-Con | CAP ALUM 1000UF 20% 6.3V SMD | 100% | View |
| EEV-FK0J102GP | Panasonic Electronic Components | CAP ALUM 1000UF 20% 6.3V SMD | 92% | View |
| UWT0J102MNR1GS | Nichicon | CAP ALUM 1000UF 20% 6.3V SMD | 80% | View |
| UUJ1A102MNQ1MS | Nichicon | CAP ALUM 1000UF 20% 10V SMD | 73% | View |
| EEE-FK1C102SL | Panasonic Electronic Components | CAP ALUM 1000UF 20% 16V SMD | 56% | View |
| UT108M025HPNTA | Aillen | CAP. ALUM 1000UF 25V 20% SMD | 54% | View |
