CAP ALUM 2.2UF 20% 35V SMD

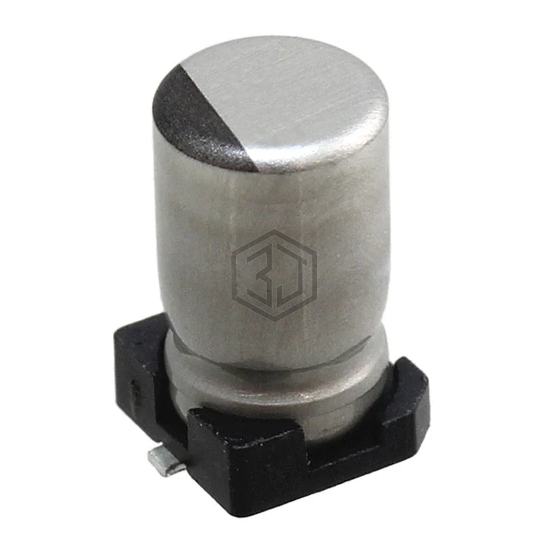

UCB1V2R2MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2.2UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 8,059
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 11 mA @ 120 Hz |
| Ripple Current @ High Frequency | 16.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMLF350ADA2R2MD73G | United Chemi-Con | CAP ALUM 2.2UF 20% 35V SMD | 100% | View |
| EEE-HP1V2R2R | Panasonic Electronic Components | CAP ALUM 2.2UF 20% 35V SMD | 97% | View |
| 35NSKV2.2M4X5.5 | Rubycon | CAP ALUM 2.2UF 20% 35V SMD | 87% | View |
| UUP1V2R2MCL1GS | Nichicon | CAP ALUM 2.2UF 20% 35V SMD | 87% | View |
| TYEH1H225D55MTR | TE Connectivity Passive Product | CAP ALUM 2.2UF 20% 50V SMD | 85% | View |
| AEB225M2WJ32T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 2.2UF 20% 450V SMD | 59% | View |
Submit your RFQ for UCB1V2R2MCL1GS and get a quote within 24 hours.
