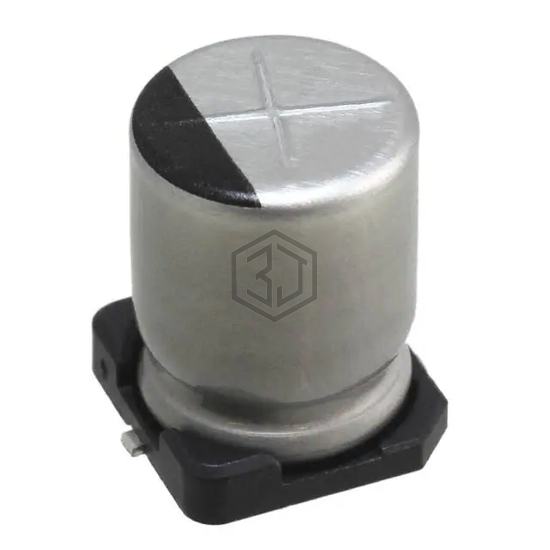

CAP ALUM 33UF 20% 50V SMD
UCB1H330MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 3,237
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 77 mA @ 120 Hz |
| Ripple Current @ High Frequency | 115.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMLF500ADA330MHA0G | United Chemi-Con | CAP ALUM 33UF 20% 50V SMD | 92% | View |
| MAL215371339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 50V SMD | 72% | View |
| AFK336M10B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 33UF 20% 10V SMD | 70% | View |
| EEV336M6R3A9BAA | KEMET | CAP ALUM 33UF 20% 6.3V SMD | 68% | View |
| UT336M035HEHTA | Aillen | CAP. ALUM33UF 35V 20% SMD | 68% | View |
| AFK336M10C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 33UF 20% 10V SMD | 61% | View |
Submit your RFQ for UCB1H330MNL1GS and get a quote within 24 hours.
