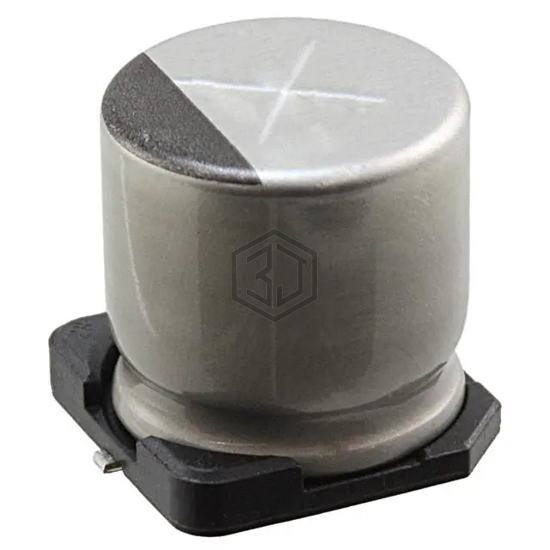

CAP ALUM 470UF 20% 16V SMD
UCB1C471MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 3,042
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 254 mA @ 120 Hz |
| Ripple Current @ High Frequency | 381 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUJ1C471MNJ1MS | Nichicon | CAP ALUM 470UF 20% 16V SMD | 89% | View |
| AHA477M16F24T-F | Cornell Dubilier Knowles | CAP ALUM 470UF 20% 16V SMD | 89% | View |
| EMHJ160ARA471MJA0G | Chemi-Con | CAP ALUM 470UF 20% 16V SMD | 88% | View |
| EEE-FN1E471UP | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V SMD | 65% | View |
| EEE-FNJ471XUV | Panasonic Electronic Components | CAP ALUM 470UF 20% 6.3V SMD | 64% | View |
| VUJ471M1ETR-1313S | SURGE | CAP ALUM 470UF 20% 25V SMD | 62% | View |
Submit your RFQ for UCB1C471MNL1GS and get a quote within 24 hours.
