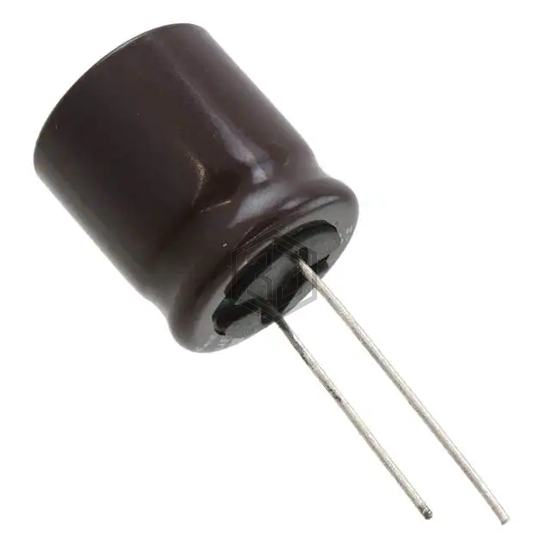

CAP ALUM 22UF 20% 450V RADIAL
UCA2W220MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 6,299
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 280 mA @ 120 Hz |
| Ripple Current @ High Frequency | 560 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UCA2W220MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 420BXW22MEFR10X25 | Rubycon | CAP ALUM 22UF 20% 420V RADIAL | 93% | View |
| B43858A4226M9 | EPCOS - TDK Electronics | CAP ALUM 22UF 20% 350V RADIAL | 90% | View |
| EEU-ED2V220 | Panasonic Electronic Components | CAP ALUM 22UF 20% 350V RADIAL | 80% | View |
| EEU-EB2V220 | Panasonic Electronic Components | CAP ALUM 22UF 20% 350V RADIAL | 70% | View |
| UCY2D220MPD1TD | Nichicon | CAP ALUM 22UF 20% 200V RADIAL | 68% | View |
| MAL211890013E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 200V AXIAL | 62% | View |
Submit your RFQ for UCA2W220MHD6 and get a quote within 24 hours.
