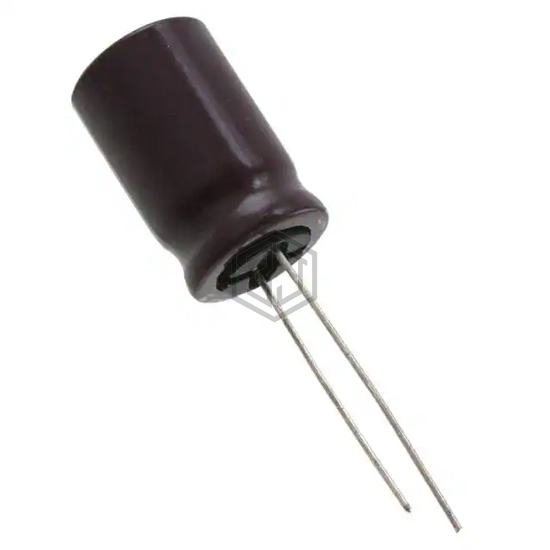

CAP ALUM 22UF 20% 350V RADIAL
UCA2V220MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 3,850
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 175 mA @ 120 Hz |
| Ripple Current @ High Frequency | 350 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UCA2V220MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400BXW22MEFR10X25 | Rubycon | CAP ALUM 22UF 20% 400V RADIAL | 75% | View |
| EKMG451ELL220ML25S | United Chemi-Con | CAP ALUM 22UF 20% 450V RADIAL | 70% | View |
| UCS2G220MHD | Nichicon | CAP ALUM 22UF 20% 400V RADIAL | 59% | View |
| EGXE500ETC220MH12D | United Chemi-Con | CAP ALUM 22UF 20% 50V RADIAL | 57% | View |
| EKMQ201ELL220MJ16S | United Chemi-Con | CAP ALUM 22UF 20% 200V RADIAL | 56% | View |
| 160YXF22MEFCT810X20 | Rubycon | CAP ALUM 22UF 20% 160V RADIAL | 56% | View |
