CAP ALUM 100UF 20% 250V RADIAL

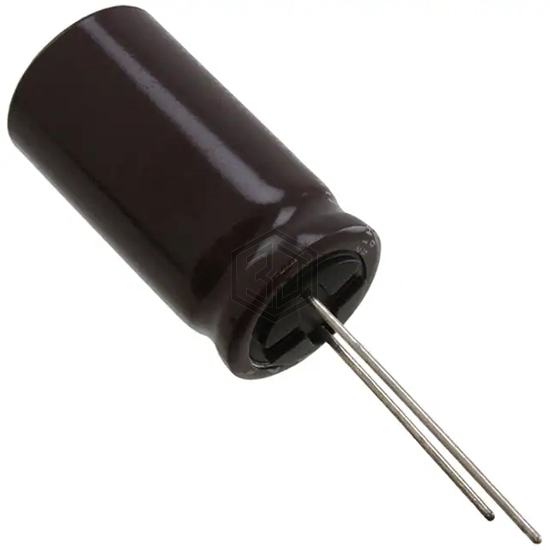

UCA2E101MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 2,856
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 700 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UCA2E101MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-ED2D101 | Panasonic Electronic Components | CAP ALUM 100UF 20% 200V RADIAL | 87% | View |
| MAL219326101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 400V SNAP | 79% | View |
| ELXM451VSN101MR25S | United Chemi-Con | CAP ALUM 100UF 20% 450V SNAP | 74% | View |
| UPT2D101MHD | Nichicon | CAP ALUM 100UF 20% 200V RADIAL | 70% | View |
| B43252A4107M | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 350V SNAP | 70% | View |
| MAL211929101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 100V AXIAL | 56% | View |
Submit your RFQ for UCA2E101MHD and get a quote within 24 hours.
