CAP ALUM 68UF 20% 160V RADIAL

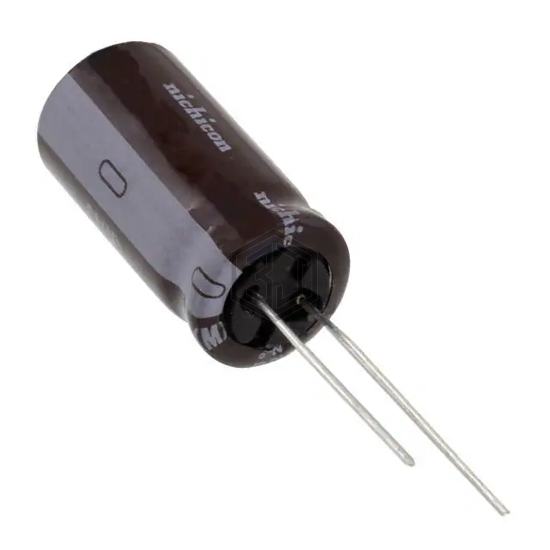

UCA2C680MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 708
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 475 mA @ 120 Hz |
| Ripple Current @ High Frequency | 950 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for UCA2C680MHD1TO and get a quote within 24 hours.
