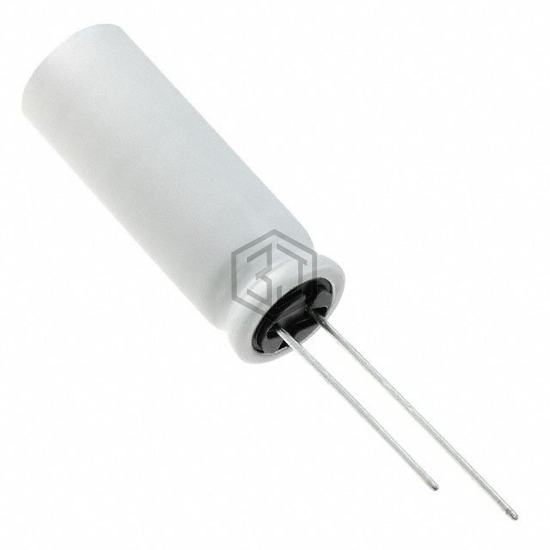

CAP ALUM 2700UF 20% 35V RADIAL
UBY1V272MHL is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2700UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 135°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 5,451
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 25mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 135°C |
| Operating Temperature | -40°C ~ 135°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 2.393 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.19 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBY1V272MHL6TN | Nichicon | CAP ALUM 2700UF 20% 35V RADIAL | 99% | View |
| UBY1V272MHL6 | Nichicon | CAP ALUM 2700UF 20% 35V RADIAL | 99% | View |
| EEU-TP1V272 | Panasonic Electronic Components | CAP ALUM 2700UF 20% 35V RADIAL | 94% | View |
| UBY1H272MHL | Nichicon | CAP ALUM 2700UF 20% 50V RADIAL | 86% | View |
| EEU-TP1E272S | Panasonic Electronic Components | CAP ALUM 2700UF 20% 25V RADIAL | 79% | View |
| EGQB250ELL272ML25H | United Chemi-Con | CAP ALUM 2700UF 20% 25V RADIAL | 73% | View |
