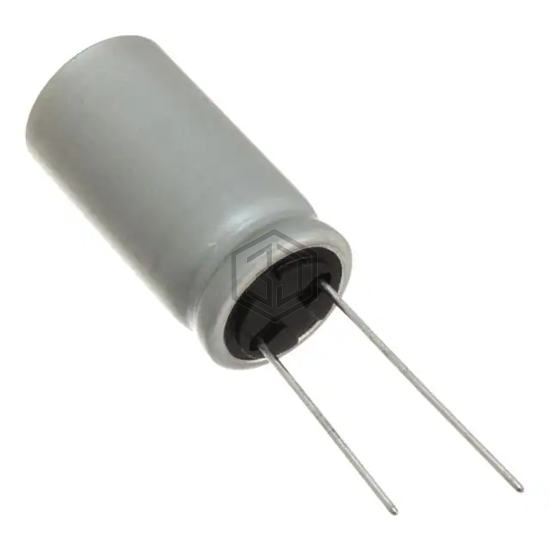

CAP ALUM 2400UF 20% 50V RADIAL
UBY1H242MHL is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2400UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 135°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 64
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2400 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 28mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 135°C |
| Operating Temperature | -40°C ~ 135°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 2.265 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.02 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
