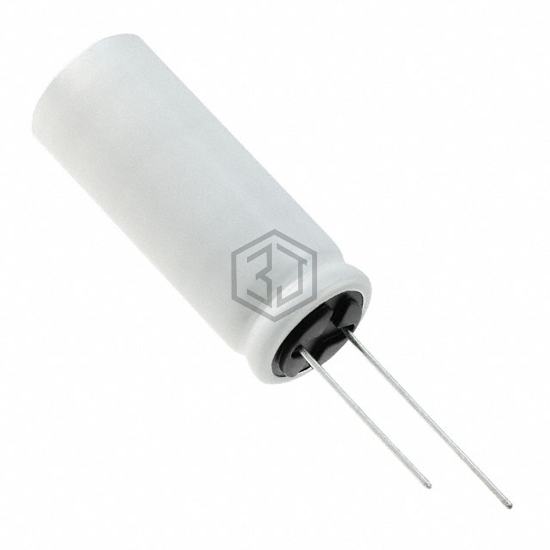

CAP ALUM 9100UF 20% 25V RADIAL
UBY1E912MHL is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 9100UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 135°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,078
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 9100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 19mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 135°C |
| Operating Temperature | -40°C ~ 135°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 3.341 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.93 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBY1E103MHL | Nichicon | CAP ALUM 10000UF 20% 25V RADIAL | 94% | View |
| UBY1E822MHL | Nichicon | CAP ALUM 8200UF 20% 25V RADIAL | 90% | View |
| UBY1E752MHL | Nichicon | CAP ALUM 7500UF 20% 25V RADIAL | 89% | View |
| EGPD250ELL752MM30H | United Chemi-Con | CAP ALUM 7500UF 20% 25V RADIAL | 87% | View |
| UBY1V752MHL | Nichicon | CAP ALUM 7500UF 20% 35V RADIAL | 81% | View |
| UXY1E782MHW | Nichicon | CAP ALUM 7800UF 20% 25V RADIAL | 79% | View |
