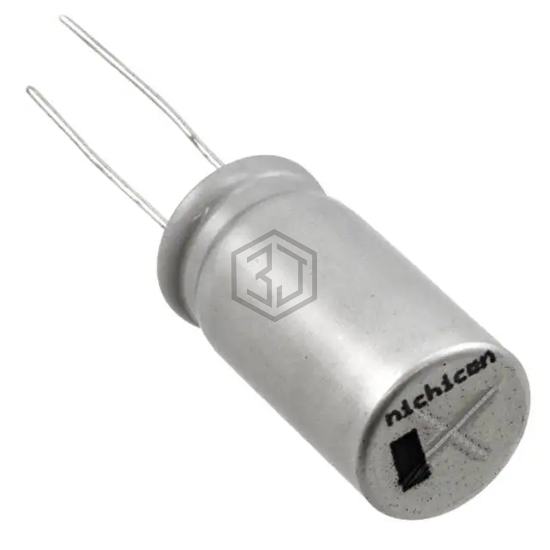

CAP ALUM 15UF 20% 350V RADIAL
UBX2V150MHL is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 150°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 9,232
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 150°C |
| Operating Temperature | -25°C ~ 150°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 234 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBX2V150MHL1TO | Nichicon | CAP ALUM 15UF 20% 350V RADIAL | 100% | View |
| UBX2G150MHL1TO | Nichicon | CAP ALUM 15UF 20% 400V RADIAL | 86% | View |
| UBX2G150MHL | Nichicon | CAP ALUM 15UF 20% 400V RADIAL | 86% | View |
| UBX2D150MPL | Nichicon | CAP ALUM 15UF 20% 200V RADIAL | 83% | View |
| UBX2D150MPL1TD | Nichicon | CAP ALUM 15UF 20% 200V RADIAL | 83% | View |
| UBX2V100MHL1TO | Nichicon | CAP ALUM 10UF 20% 350V RADIAL | 81% | View |
