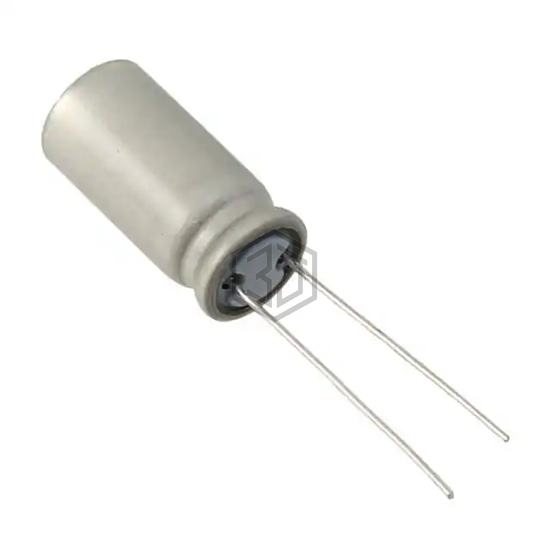

CAP ALUM 4.7UF 20% 400V RADIAL
UBX2G4R7MPL is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 150°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 177
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 150°C |
| Operating Temperature | -25°C ~ 150°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 83 mA @ 120 Hz |
| Ripple Current @ High Frequency | 149.4 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for UBX2G4R7MPL and get a quote within 24 hours.
