CAP ALUM 22UF 20% 200V RADIAL

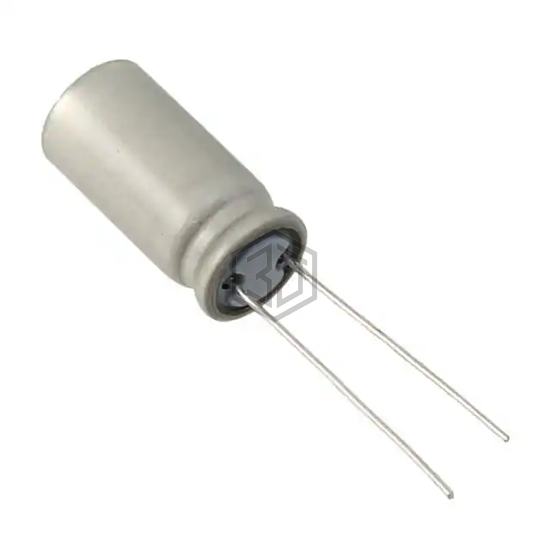

UBX2D220MPL is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 1,877
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 150°C |
| Operating Temperature | -40°C ~ 150°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 170 mA @ 120 Hz |
| Ripple Current @ High Frequency | 306 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBX2D220MPL1TD | Nichicon | CAP ALUM 22UF 20% 200V RADIAL | 100% | View |
| UBX2C220MPL | Nichicon | CAP ALUM 22UF 20% 160V RADIAL | 90% | View |
| UBX2C220MPL1TD | Nichicon | CAP ALUM 22UF 20% 160V RADIAL | 90% | View |
| UBX2D330MHL | Nichicon | CAP ALUM 33UF 20% 200V RADIAL | 74% | View |
| UBX2A220MPL1TD | Nichicon | CAP ALUM 22UF 20% 100V RADIAL | 70% | View |
| UBX2A220MPL | Nichicon | CAP ALUM 22UF 20% 100V RADIAL | 70% | View |
Submit your RFQ for UBX2D220MPL and get a quote within 24 hours.
