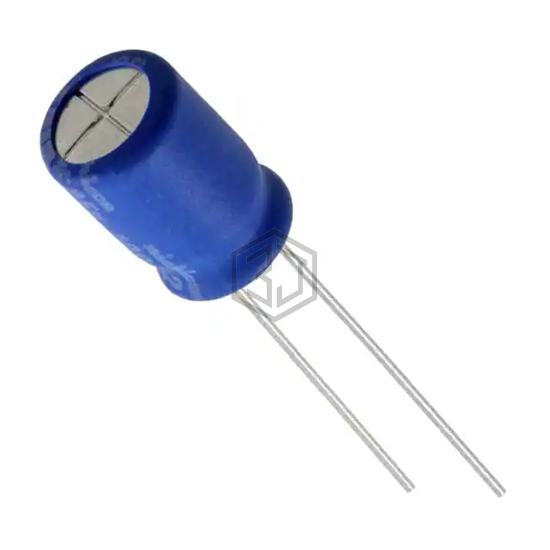

CAP ALUM 4.7UF 20% 100V RADIAL
UBW2A4R7MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 135°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 8,884
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 65 mA @ 120 Hz |
| Ripple Current @ High Frequency | 130 mA @ 100 kHz |
| Impedance | 2 Ohms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UBW2A4R7MPD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW2A4R7MPD1TA | Nichicon | CAP ALUM 4.7UF 20% 100V RADIAL | 100% | View |
| UBX1V4R7MPL | Nichicon | CAP ALUM 4.7UF 20% 35V RADIAL | 59% | View |
| UBX1V4R7MPL1TD | Nichicon | CAP ALUM 4.7UF 20% 35V RADIAL | 59% | View |
| UBW1H4R7MPD1TD | Nichicon | CAP ALUM 4.7UF 20% 50V RADIAL | 57% | View |
| UBW1H4R7MPD1TA | Nichicon | CAP ALUM 4.7UF 20% 50V RADIAL | 57% | View |
| UBW1H4R7MPD | Nichicon | CAP ALUM 4.7UF 20% 50V RADIAL | 57% | View |
