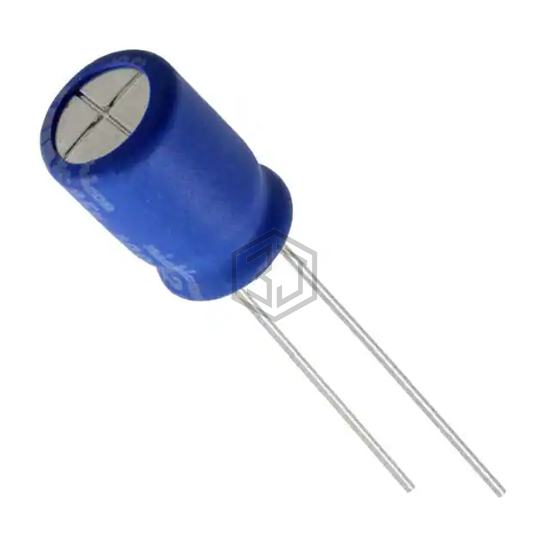

CAP ALUM 22UF 20% 80V RADIAL
UBW1K220MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 135°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 8,169
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 150 mA @ 100 kHz |
| Impedance | 1.5 Ohms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW1K220MPD1TD | Nichicon | CAP ALUM 22UF 20% 80V RADIAL | 100% | View |
| UBW1K220MPD1TA | Nichicon | CAP ALUM 22UF 20% 80V RADIAL | 100% | View |
| UBW1J220MPD | Nichicon | CAP ALUM 22UF 20% 63V RADIAL | 84% | View |
| UBW1J220MPD1TA | Nichicon | CAP ALUM 22UF 20% 63V RADIAL | 84% | View |
| UBW1J220MPD1TD | Nichicon | CAP ALUM 22UF 20% 63V RADIAL | 84% | View |
| UBW1J330MPD1TA | Nichicon | CAP ALUM 33UF 20% 63V RADIAL | 80% | View |
