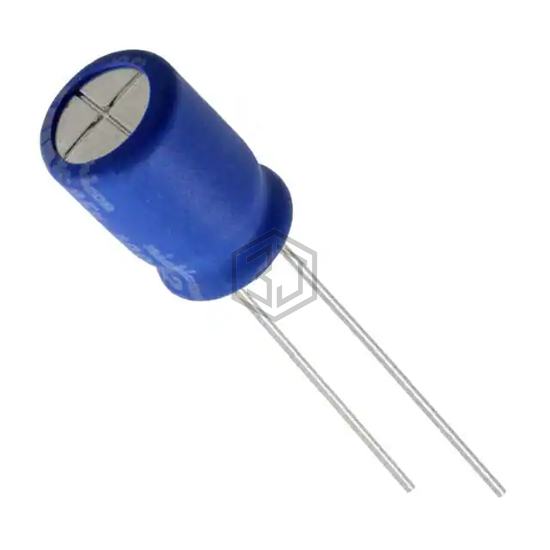

CAP ALUM 3.3UF 20% 50V RADIAL
UBW1H3R3MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3.3UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 135°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 8,722
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 30 mA @ 120 Hz |
| Ripple Current @ High Frequency | 60 mA @ 100 kHz |
| Impedance | 1.5 Ohms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UBW1H3R3MPD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBX1V3R3MPL1TD | Nichicon | CAP ALUM 3.3UF 20% 35V RADIAL | 89% | View |
| UBX1V3R3MPL | Nichicon | CAP ALUM 3.3UF 20% 35V RADIAL | 89% | View |
| UBW1H4R7MPD1TD | Nichicon | CAP ALUM 4.7UF 20% 50V RADIAL | 71% | View |
| UBW1H4R7MPD1TA | Nichicon | CAP ALUM 4.7UF 20% 50V RADIAL | 71% | View |
| UBW1H4R7MPD | Nichicon | CAP ALUM 4.7UF 20% 50V RADIAL | 71% | View |
| UBX1V2R2MPL | Nichicon | CAP ALUM 2.2UF 20% 35V RADIAL | 65% | View |
Submit your RFQ for UBW1H3R3MPD and get a quote within 24 hours.
