CAP ALUM 1000UF 20% 50V RADIAL

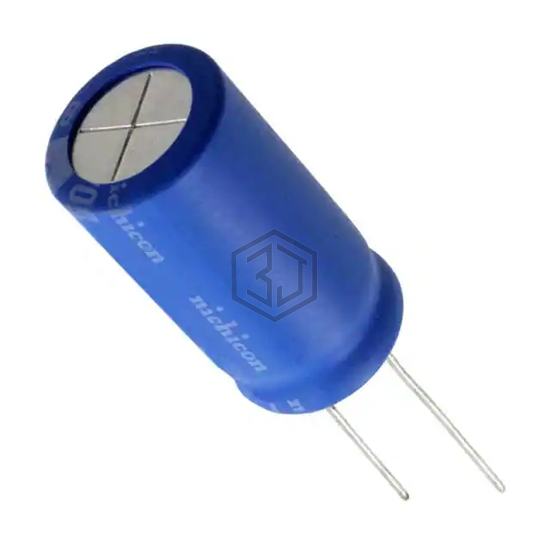

UBW1H102MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 135°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 3,971
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.628 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.43 A @ 100 kHz |
| Impedance | 31 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW1V102MHD1TN | Nichicon | CAP ALUM 1000UF 20% 35V RADIAL | 83% | View |
| UBW1J102MHD | Nichicon | CAP ALUM 1000UF 20% 63V RADIAL | 77% | View |
| MAL216035102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V RADIAL | 65% | View |
| MAL216036102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 25V RADIAL | 64% | View |
| MAL216050102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 35V RADIAL | 64% | View |
| MAL226060102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 35V RADIAL | 58% | View |
Submit your RFQ for UBW1H102MHD and get a quote within 24 hours.
