CAP ALUM 100UF 20% 25V RADIAL

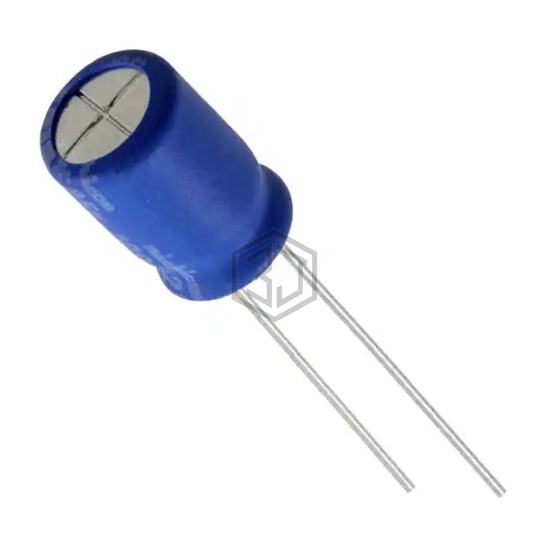

UBW1E101MPD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 135°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 6,872
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 250 mA @ 120 Hz |
| Ripple Current @ High Frequency | 500 mA @ 100 kHz |
| Impedance | 130 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216056101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 25V RADIAL | 89% | View |
| RXW101M1VBK-0811S | SURGE | CAP ALUM 100UF 20% 35V RADIAL | 84% | View |
| MAL216030101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 35V RADIAL | 79% | View |
| UBW1H101MPD1TD | Nichicon | CAP ALUM 100UF 20% 50V RADIAL | 73% | View |
| UBX1E101MPL | Nichicon | CAP ALUM 100UF 20% 25V RADIAL | 67% | View |
| UBX1J101MPL1TD | Nichicon | CAP ALUM 100UF 20% 63V RADIAL | 62% | View |
Submit your RFQ for UBW1E101MPD1TA and get a quote within 24 hours.
