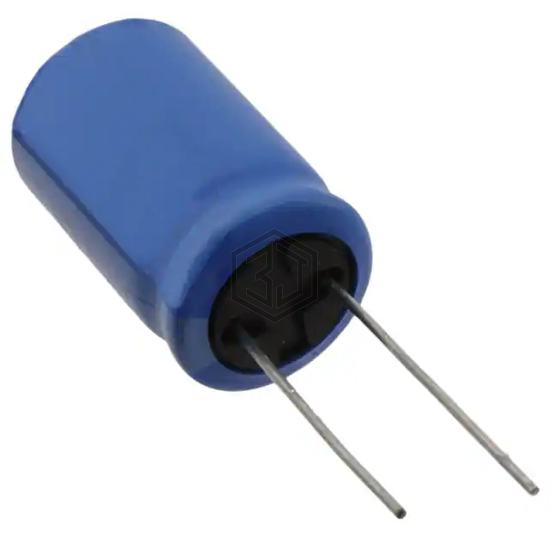

CAP ALUM 33UF 20% 350V RADIAL
UBT2V330MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 125°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 5,195
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -25°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 189 mA @ 120 Hz |
| Ripple Current @ High Frequency | 340.2 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43866C4336M | EPCOS - TDK Electronics | CAP ALUM 33UF 20% 350V RADIAL | 100% | View |
| B43866C2336M | EPCOS - TDK Electronics | CAP ALUM 33UF 20% 250V RADIAL | 80% | View |
| UBW1H330MPD1TD | Nichicon | CAP ALUM 33UF 20% 50V RADIAL | 70% | View |
| UBT1H330MPD8 | Nichicon | CAP ALUM 33UF 20% 50V RADIAL | 70% | View |
| EGXE161ELL330MJ25S | United Chemi-Con | CAP ALUM 33UF 20% 160V RADIAL | 69% | View |
| UBT2C330MPD8 | Nichicon | CAP ALUM 33UF 20% 160V RADIAL | 69% | View |
Submit your RFQ for UBT2V330MHD and get a quote within 24 hours.
