CAP ALUM 10UF 20% 400V RADIAL

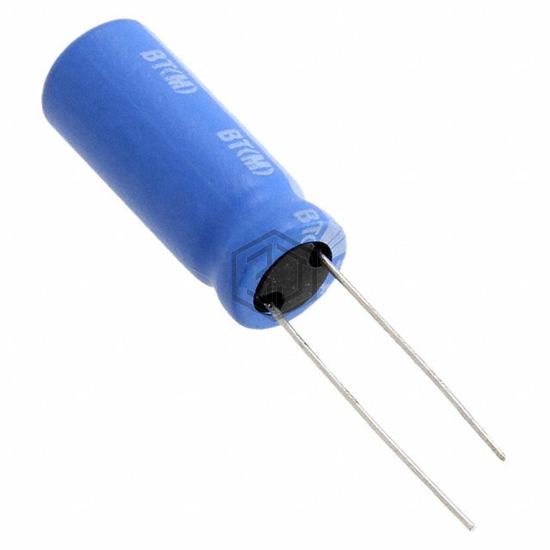

UBT2G100MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 125°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 8,004
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -25°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 86 mA @ 120 Hz |
| Ripple Current @ High Frequency | 154.8 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBT2W100MHD | Nichicon | CAP ALUM 10UF 20% 450V RADIAL | 96% | View |
| EGXE451ELL100MK20S | United Chemi-Con | CAP ALUM 10UF 20% 450V RADIAL | 96% | View |
| UBT2W100MHD8 | Nichicon | CAP ALUM 10UF 20% 450V RADIAL | 96% | View |
| UBT2V100MPD8 | Nichicon | CAP ALUM 10UF 20% 350V RADIAL | 95% | View |
| UBT2V100MPD8TD | Nichicon | CAP ALUM 10UF 20% 350V RADIAL | 95% | View |
| UBX1V100MPL1TD | Nichicon | CAP ALUM 10UF 20% 35V RADIAL | 76% | View |
